Installing butterfly stake rotating micro sprinklers is a straightforward process, primarily involving assembly, positioning, and final connection. Follow these steps for optimal performance:

1.Assemble the Sprinkler Components

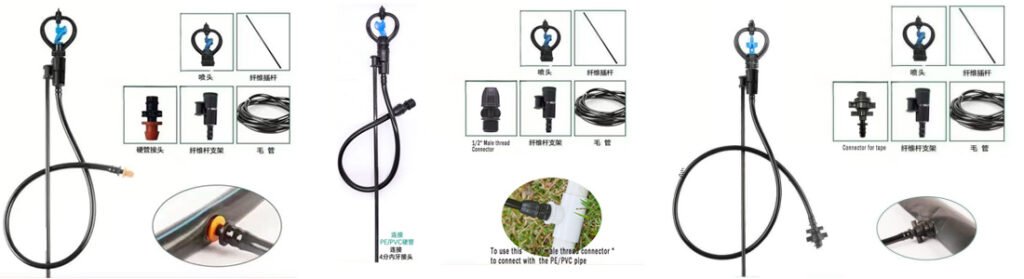

Connect the fiberglass stake (available in 1.0m/1.2m/1.5m lengths) 、 micro tube (8*11mm) and connectors to the main body of the butterfly stake. Ensure all parts are securely fitted. For certain models, a diaphragm anti-drip valve should be installed to prevent leakage after water shut-off.below is three different assembly type for choice:

2.Measure, Position, and Punch Holes
Plan the sprinkler layout based on your irrigation needs, typically with a spacing of 3-5 meters. Use a specialized hole puncher to get a suitable holes.

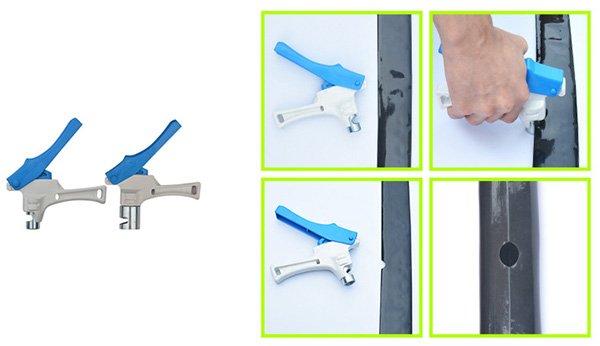

16mm flexible punch Holes

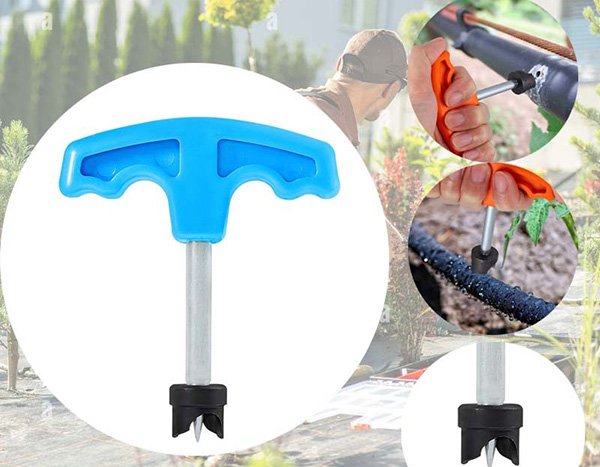

16mm Pipe punch Holes

3.Secure and Connect the Sprinkler

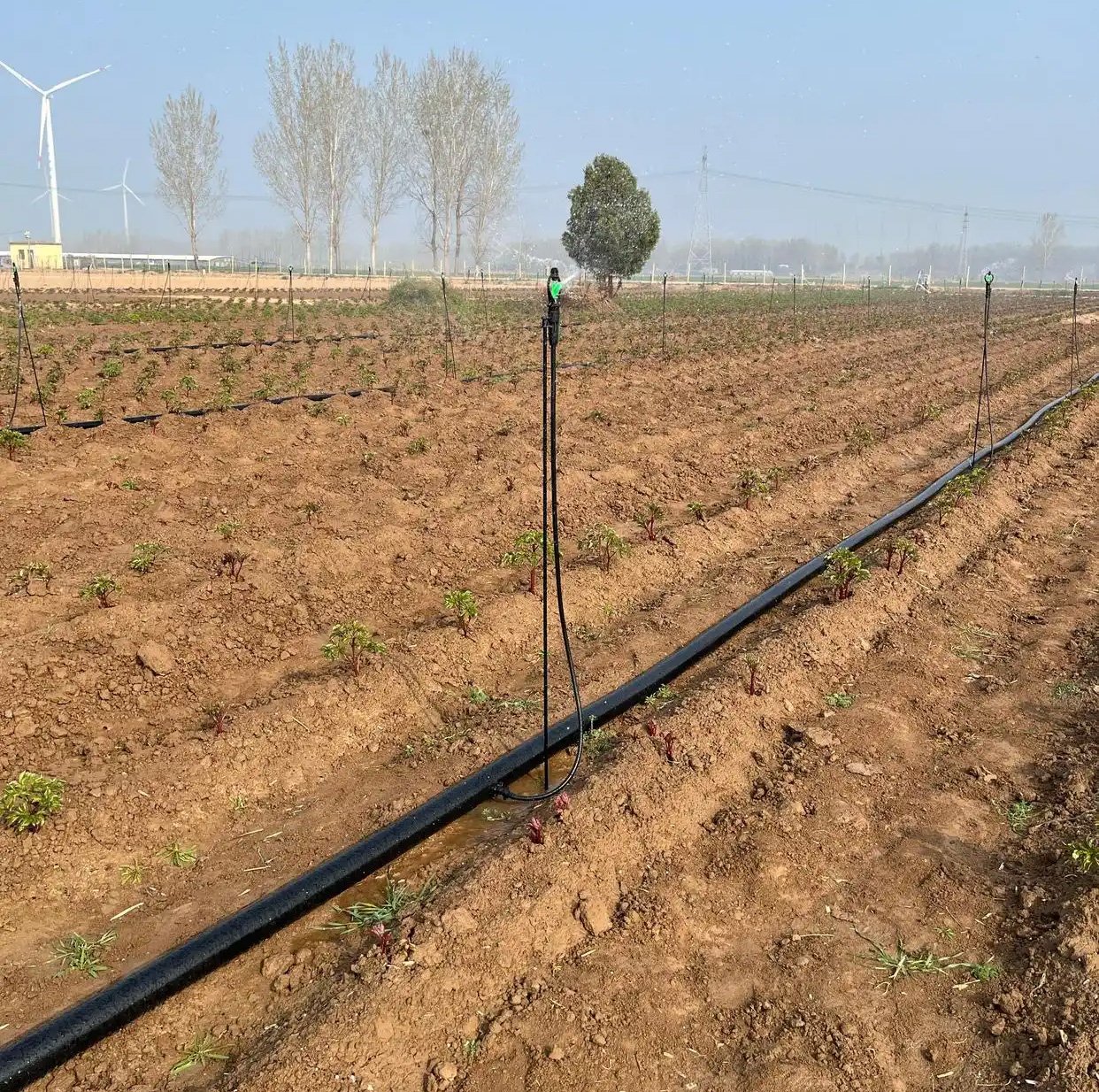

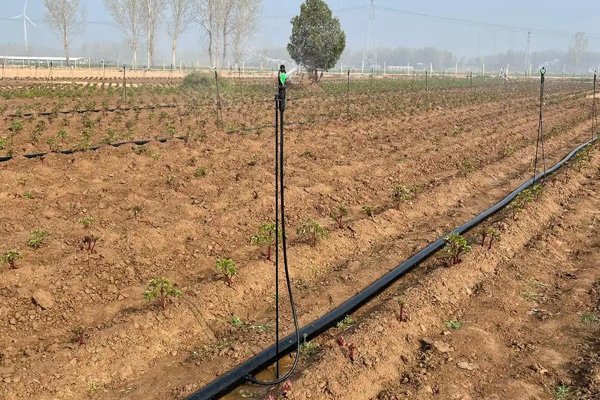

Insert the fully assembled sprinkler into the hole. Adjust it to a level position and firmly compact the soil around the stake to secure it. When connecting to the irrigation network, pay attention to the water flow direction to avoid reverse installation, which can cause clogging.

4. Verify Performance and Adjust

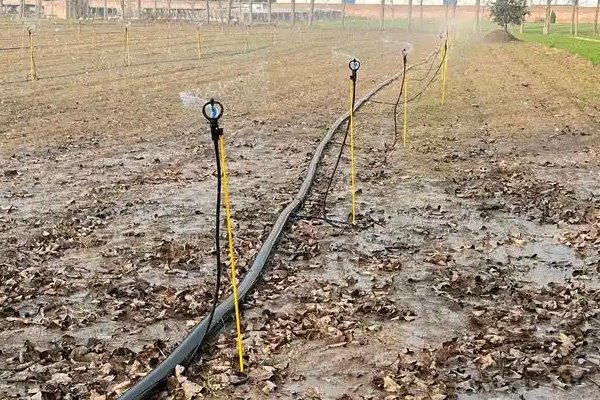

Once the water supply is activated, check that the sprinkler head rotates smoothly and the spray pattern adequately covers the target area. Make minor positional adjustments if necessary.
