What Are UPVC Compact Ball Valves?

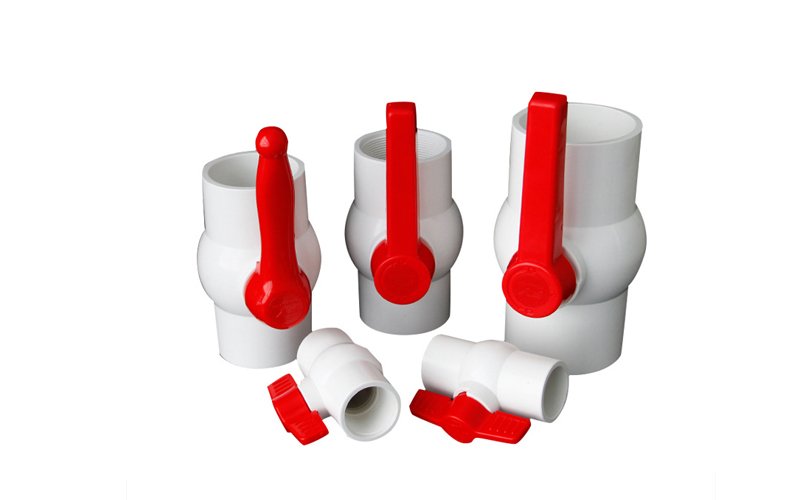

UPVC Impact Ball Valves are quarter-turn valves designed with a spherical disc (the ball) that controls flow through a port. The “impact” designation indicates that the UPVC material has been specially formulated or reinforced to withstand mechanical shock, pressure surges, and lower temperatures without becoming brittle. Unlike standard PVC, UPVC contains no plasticizers, making it more rigid, chemically resistant, and suitable for a wider range of industrial applications.

Key Features and Technical Advantages

1. Superior Material Properties

· Impact Resistance: Specially formulated UPVC withstands pressure surges up to 150% of rated pressure

· Corrosion Immunity: Completely resistant to rust, chemical fertilizers, and agricultural chemicals

· UV Stabilization: Most irrigation-grade UPVC valves include UV inhibitors for prolonged outdoor service

· Smooth Bore Design: Minimizes pressure drop and prevents clogging from sediment

2. Pressure and Temperature Ratings

Standard working pressures: 10 bar (150 psi) to 16 bar (230 psi)

Temperature range: 0°C to 60°C (32°F to 140°F)

Burst pressures typically 4x working pressure

3. Connection Varieties

Socket weld ends for permanent installation

 Threaded connections (BSP/NPT) for modular systems

Flanged versions for larger diameter mains

Why UPVC Impact Ball Valves Excel in Irrigation Applications

Water Hammer Resistance

Irrigation systems experience frequent pressure surges from pump starts/stops and rapid valve closures. The impact-modified material absorbs these shocks, preventing the catastrophic failures common with standard PVC valves.

Chemical Compatibility

Unlike metal valves, UPVC doesn’t corrode when exposed to:

º Agricultural fertilizers and pesticides

º Chemically treated water

º Soil minerals and acidic conditions

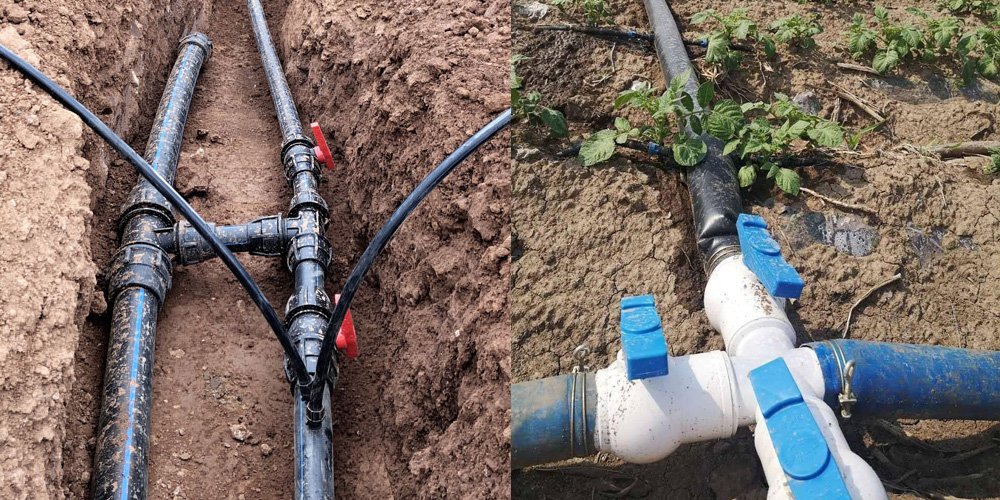

Applications in Irrigation Systems

Primary System Control

Mainline isolation and zoning;Pump discharge control;Reservoir inlet/outlet management

Specialized Irrigation

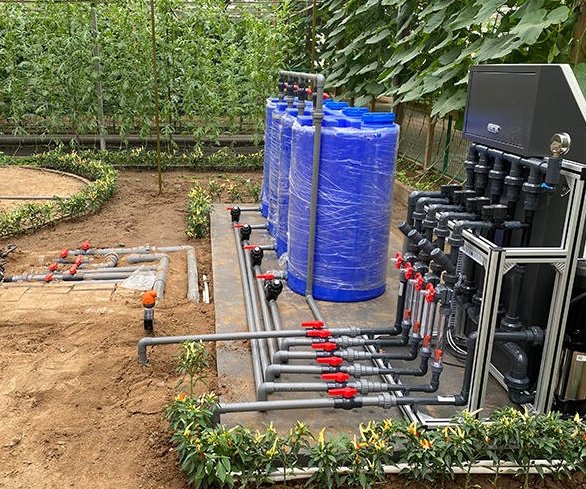

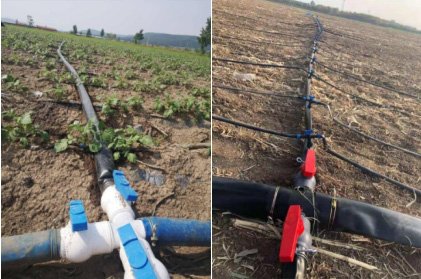

Drip irrigation header control;Sprinkler system zone valves;Greenhouse irrigation manifolds

Selection Criteria for Irrigation Projects

1. Valve Size and Flow Requirements

º Match valve Cv (flow coefficient) to system requirements

º Consider future expansion when sizing

º Account for pressure drop at maximum flow

2.Pressure Class Selection

º Choose pressure rating exceeding maximum system pressure

º Include safety margin for pressure surges

º Consider elevation changes in the system

Comparative Analysis: UPVC vs. Alternative Materials

UPVC vs. Standard PVC

300% better impact resistance

Higher pressure ratings

Better UV and chemical resistance

UPVC vs. Metal Valves

60% lower cost than stainless steel

No galvanic corrosion in buried applications

Lighter weight for easier installation

UPVC vs. Brass/Bronze

No dezincification in aggressive water

Better flow coefficients

No metal contamination of water

Conclusion

UPVC Impact Ball Valves represent the optimal balance of performance, durability, and value for irrigation systems. Their exceptional resistance to the specific challenges of irrigation environments—chemical exposure, pressure surges, and outdoor weathering—makes them an intelligent choice for both new installations and retrofits.

As irrigation technology advances toward greater automation and efficiency, the reliability of system components becomes increasingly critical. UPVC Impact Ball Valves provide that reliability foundation, ensuring that irrigation systems deliver consistent performance season after season.

For irrigation designers, contractors, and agricultural operators, specifying UPVC Impact Ball Valves means choosing a proven solution that protects system integrity while maximizing return on investment through decades of trouble-free service.
