Introduction: Why Your Drip System Needs a Reliable Shutoff Valve

A drip irrigation system is a marvel of efficiency, delivering water precisely to the roots of your plants. But its true control and reliability hinge on a small, crucial component: the shutoff valve. Specifically, plastic shutoff valves have become the go-to choice for gardeners and farmers worldwide. They are the gatekeepers of your system, allowing you to isolate, control, and protect your investment with a simple turn.

This comprehensive guide dives deep into everything you need to know about plastic drip irrigation shutoff valves, helping you optimize your system for health, conservation, and ease.

What is a Plastic Drip Irrigation Shutoff Valve?

A plastic drip irrigation shutoff valve is a manually operated valve installed at key points in your drip system to start or stop the flow of water. Made from durable polymers like PVC, ABS, or polypropylene, these valves are corrosion-resistant, affordable, and perfectly suited for the low-pressure environment of drip irrigation.

Primary Functions:

·Zone Control: Turn off individual zones without affecting the entire system.

·Maintenance & Repair: Isolate sections for fixing leaks, clearing clogs, or adding new lines.

·System Protection: Prevent water flow during freezing conditions or when the system is not in use.

·Water Conservation: Eliminate unintended watering and ensure every drop is used purposefully.

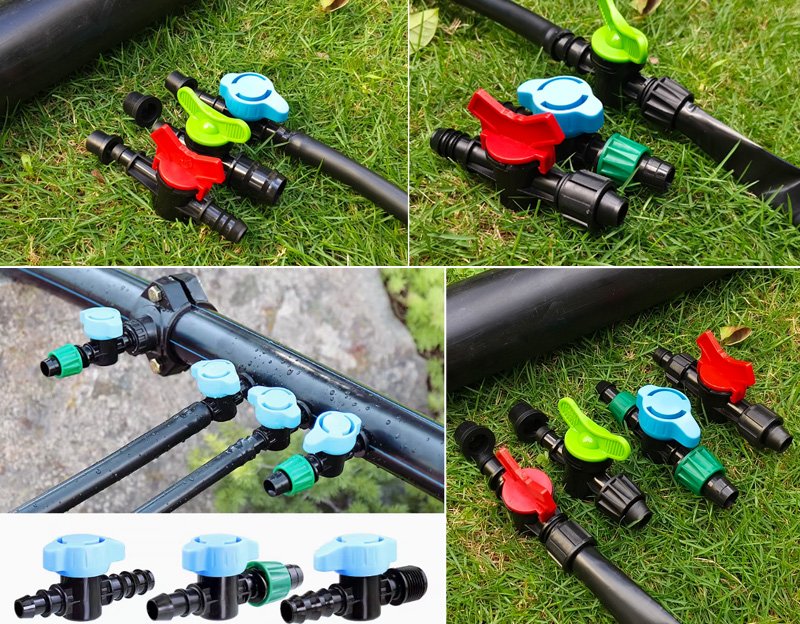

Types of Plastic Shutoff Valves for Drip Systems

Choosing the right type depends on your system’s layout and needs.

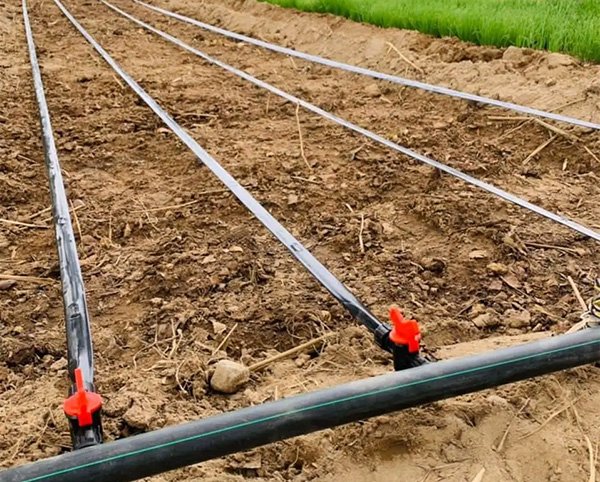

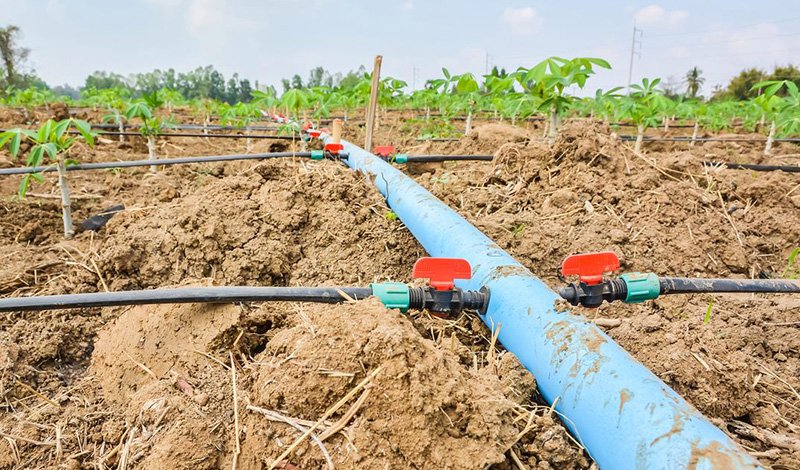

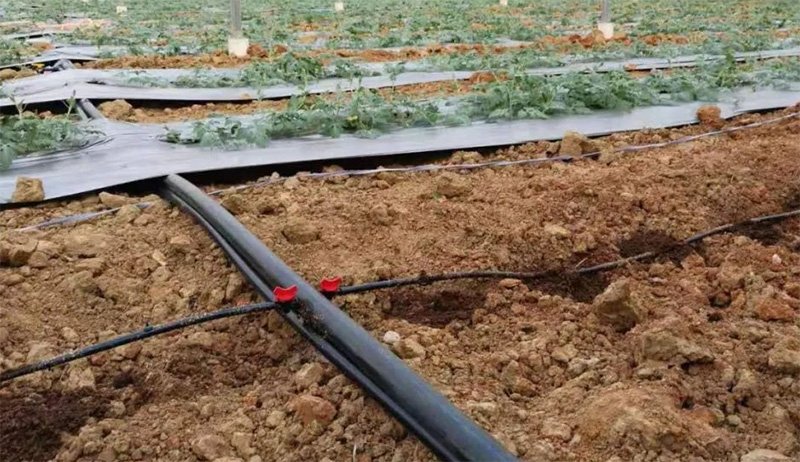

1. In-Line Shutoff Valves

·Description: Installed directly within a poly tubing line.

· Best For: Creating control points along a mainline or sub-mainline. Perfect for dividing a large field into manageable sections.

2. Hose-End or Hose Bib Valves

·Description: Connects to a faucet or hose bib, serving as the primary on/off point for the entire system. Often includes a built-in filter and pressure regulator port.

·Best For: The connection point between your water source and the drip system. Essential for starting and stopping all watering.

3. Multi-Outlet Manifold Valves

·Description: A central hub with one inlet and several outlet ports, each with its own valve.

·Best For: Distributing water to multiple zones (e.g., different garden beds, potted plant stations) from a single source with individual control.

Common Valve Mechanisms:

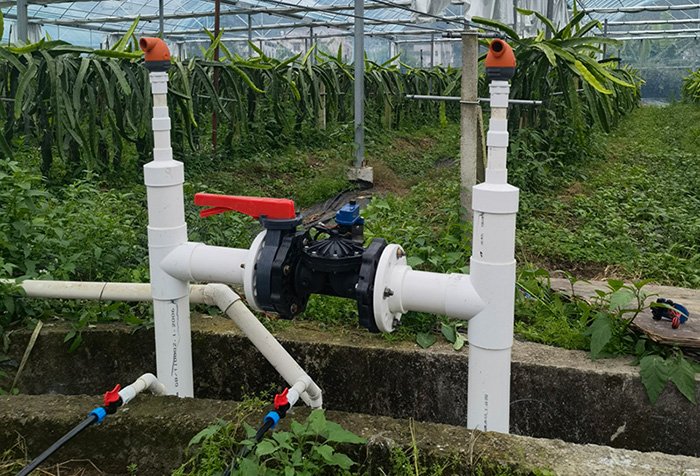

·Ball Valves: Offer reliable, full-flow on/off control with a quarter-turn lever. Most popular for main shutoff duties.

·Gate Valves: Use a wheel to slowly raise and lower a “gate.” Less common in drip systems due to higher cost and potential for debris clogging.

·Push/Pull Valves: Simple, inexpensive valves operated by hand. Common on small in-line emitters or micro-sprinklers.

Key Advantages of Using Plastic Valves

·Corrosion Resistance: Unlike metal, plastic won’t rust or corrode from constant moisture or fertilizer exposure.
·Cost-Effective: Significantly cheaper than brass valves, allowing you to add more control points without high cost.

·Lightweight & Easy to Install: Simple to handle and connect to standard PVC or polyethylene tubing with barbed fittings, clamps, or threaded adapters.

·Chemical Compatibility: Ideal for systems using liquid fertilizers (chemigation) as they resist salt and chemical damage.

·Durability: Engineered plastics like schedule 40 PVC are UV-stabilized and can withstand sun exposure and varying temperatures for years.

How to Choose the Right Plastic Shutoff Valve

Follow this checklist for the perfect selection:

1.Valve Size (Critical!): Match the valve’s inner diameter to your tubing size (e.g., 16mm/20mm/25mm or 1/2″, 3/4″) to maintain proper flow and prevent pressure loss.

2.Connection Type: Decide between barbed (for flexible poly tubing, used with hose clamps), threaded (FPT or MPT for connecting to pipes or other threaded components), or compression fittings.

3.Pressure Rating: Ensure the valve’s PSI rating exceeds your system’s operating pressure (typically 15-30 PSI for drip irrigation).

4.Placement & Purpose: Main shutoff? Use a sturdy ball valve. Zone control? In-line valves work well. Managing many zones? Consider a manifold.

5.Quality: Opt for brands known for durability. Look for smooth operation and robust construction.

Installation & Maintenance Tips

Installation:

·Location: Install valves in accessible, above-ground locations for easy operation.

·Support: Secure valves and tubing to prevent stress on the connections.

·Direction: Ensure the valve is installed in the correct flow direction (usually indicated by an arrow on the body).

·Winterizing: In freezing climates, shut off the valve and drain the upstream section to prevent cracking.

Maintenance:

·Operate Regularly: Turn valves on and off periodically to prevent them from seizing.

·Visual Inspections: Check for cracks, especially after winter.

·Clean Filters: If your valve has a built-in filter, clean it regularly to maintain flow.

Troubleshooting Common Valve Issues

·Leaking from Stem: Usually indicates a worn O-ring or packing seal. Some valves allow for simple seal replacement.

·Leaking from Connection: Tighten hose clamps or check thread sealant (like Teflon tape). Ensure barbed fittings are fully inserted.

·Valve Won’t Turn: May be seized from debris or mineral buildup. Try gentle back-and-forth movement. If stuck, replacement is often the easiest fix.

·Reduced Water Flow Downstream: The valve may be partially closed, or debris may be obstructing it. Check the valve position and inspect for clogs

Conclusion: Take Control of Your Watering

A plastic drip irrigation shutoff valve is more than just a part—it’s an investment in the longevity, efficiency, and intelligence of your watering system. By strategically placing these affordable and durable valves, you gain unparalleled control, save water, simplify maintenance, and ensure your plants thrive.
